Rolling cart tippers are essential tools designed to automate and streamline the process of dumping materials from bins into larger containers or processing systems. They consist of a sturdy base frame that supports the tipping mechanism, which can be powered by hydraulic, pneumatic, or electric systems. The tipping mechanism, often equipped with hydraulic or pneumatic cylinders, tilts the bin to pour out its contents efficiently. A bin support platform securely holds the bin in place during the tipping action, which can be adjusted for different bin sizes and shapes.
Operators use a control panel to manage the tipping process, which includes initiating the tilt, adjusting the angle, and stopping the process when necessary. Safety features such as emergency stop buttons and sensors ensure safe operation and protect both the equipment and the operators.
Rolling cart tippers come in various types, including manual, hydraulic, pneumatic, and electric models, each suited to different operational needs. Manual tippers are operated by hand, while hydraulic and pneumatic tippers provide automated and precise control. Electric tippers offer advanced functionality with programmable settings.
These tippers are widely used in industries such as manufacturing, waste management, food processing, distribution, and healthcare. They enhance efficiency by reducing manual labor, improve safety by minimizing heavy lifting, and offer flexibility to handle various materials and bin sizes. Overall, rolling cart tippers are crucial for improving material handling processes and operational productivity.
- Description
- Additional information
- Specifications
- Installation
- Maintenance
- Q&A
- Advantages / Disadvantages
- Applications
- Download
- Drawings
Description
Rolling Lifts and Cart Tippers are specialized equipment designed to facilitate the efficient and ergonomic dumping of materials from bins into larger containers or processing systems. In addition, these Lifts and Cart Tippers are essential in various industrial and commercial settings, including manufacturing plants, waste management facilities, and food processing units. Furthermore, they streamline the handling of materials by automating and simplifying the dumping process, thereby improving workplace safety and operational efficiency. Finally, this description provides an in-depth look at rolling cart tippers, covering their components, functionality, types, applications, and benefits.
Components of Rolling Cart Tippers
Base Frame
The base frame is the foundational structure of a rolling cart tipper. It supports the entire system and provides stability during operation. Typically constructed from durable materials such as steel or aluminum, the base frame is designed to withstand the weight and impact of the bins being tipped. Finally, it often includes caster wheels or other mobility features to allow easy movement and positioning.
Tipping Mechanism
The Lifts and Cart Tippers mechanism is the core component responsible for tilting the bin to empty its contents. Also, this mechanism can vary in design, but it generally includes hydraulic or pneumatic cylinders that control the tilt angle. The tipping mechanism must be robust and precise to ensure smooth and controlled dumping of materials.
Bin Support Platform
The bin support platform is the area where the bin rests during the tipping process. In addition, it is designed to securely hold the bin in place while allowing it to be tilted. In addition, the platform may include adjustable components or guides to accommodate different bin sizes and shapes. Finally, it often features anti-slip surfaces to prevent the bin from shifting during operation.
Hydraulic or Pneumatic System
Hydraulic or pneumatic systems are used to power the Lifts and Cart Tippers mechanism. In addition, Hydraulic systems utilize fluid pressure to move cylinders, while pneumatic systems use compressed air. Also, these systems must be designed for reliability and precision, as they control the tipping motion and ensure safe operation. They also include controls for adjusting the tilt angle and speed.
Control Panel
The control panel allows operators to manage the tipping process. In addition, it typically includes buttons or switches to initiate the tipping action, adjust the tilt angle, and stop the process. Modern control panels may feature digital displays and programmable settings for greater control and customization. Finally, some systems are equipped with remote controls for convenience and enhanced safety.
Safety Features
Safety features are critical for preventing accidents and ensuring safe operation. In addition, these may include emergency stop buttons, safety guards, and sensors that detect obstructions. Safety features are designed to protect operators and prevent damage to equipment or bins during the tipping process.
Functionality and Operation
Loading the Bin
The first step in using a rolling cart tipper involves placing the bin onto the support platform. In addition, this is typically done manually or with the aid of a forklift or other handling equipment. Finally, the bin must be positioned correctly to ensure that it is securely held in place during the tipping process.
Initiating the Tipping Action
Once the bin is in position, the operator uses the control panel to initiate the tipping action. In addition, depending on the design of the Lifts and Cart Tippers, this may involve activating hydraulic or pneumatic cylinders that tilt the bin. Finally, the Lifts and Cart Tippers mechanism gradually raises the bin to an angle where the contents can be emptied into the target container or processing system.
Dumping the Contents
As the bin reaches the desired tilt angle, the contents are emptied into the receiving container. In addition, the Lifts and Cart Tippers mechanism is designed to ensure that the entire load is discharged efficiently and completely. The operator monitors the process to ensure that the dumping is done correctly and that there are no issues.
Returning to Starting Position
After the bin has been emptied, the tipping mechanism is reversed to return the bin to its original position. In addition, the bin is lowered back onto the support platform, and the system is reset for the next cycle. The control panel allows the operator to adjust settings or perform additional tasks as needed.
Types of Rolling Cart Tippers
Manual Lifts and Cart Tippers
Manual rolling cart tippers rely on human power to operate the tipping mechanism. Operators manually tilt the bin using a lever or handle, and the process is guided by mechanical components. Furthermore, manual tippers are generally less expensive and suitable for environments with lower material handling requirements.
Hydraulic Tippers
Hydraulic rolling cart tippers use hydraulic cylinders to perform the tipping action. In addition, these systems offer precise control over the tilt angle and speed, making them ideal for applications requiring accurate and efficient material handling. Moreover, hydraulic tippers are commonly used in industrial settings where higher loads and frequent tipping are needed.
Pneumatic Lifts and Cart Tippers
The Pneumatic rolling cart tippers use compressed air to power the tipping mechanism. Pneumatic systems are valued for their simplicity and ease of maintenance. In addition, they are suitable for environments where compressed air is readily available and where precise control of the tipping action is required.
Electric Lifts and Cart Tippers
Electric rolling cart tippers use electric motors to power the tipping mechanism. These systems offer automated operation and can be integrated with control panels for enhanced functionality. Electric tippers are ideal for environments where automation is desired, and they can be programmed for various tipping sequences and settings.
Custom Lifts and Cart Tippers
Custom rolling cart tippers are designed to meet specific requirements or handle unique types of bins. These tippers may be tailored to accommodate unusual bin sizes, special materials, or specific operational needs. Custom tippers are often used in specialized industries where standard models do not suffice.
Conclusion
Rolling cart tippers are versatile and essential tools for improving material handling in various industrial and commercial settings. Also, by automating the dumping process, these tippers enhance efficiency, safety, and ergonomics. Furthermore, with different types available, including manual, hydraulic, pneumatic, and electric models, rolling cart tippers can be tailored to meet specific operational needs and handle a wide range of materials. Finally, their application in manufacturing, waste management, food processing, distribution, and healthcare underscores their importance in modern material handling systems.
Other equipment that may be of interest includes, shredders, hammer mills, pre-crushers, and compactors. Along with Aerosol crushers, compactors, ball mill, and densifiers.
Additional information
| Tippers | Gaylord Box 64/95, Single 64/95, Double 64/95, European Carts |
|---|---|
| Capacity | 350 Lbs., 700 Lbs. |
| Dump Heights | 42", 50", 56" |
| Voltage | 120VAC, 208VAC, 230VAC, 460VAC |
| Size | 64 / 95 |
| Equipment Weight | 400 Lbs., 450 Lbs., 950Lbs. |
Specifications
| Horsepower | 1.5 |
| Discharge Height | 42″, 50″, or 56″ |
| Casters | Included |
| Cord & Plug | 10′ L |
| Warranty | One Year |
| Weight | 500 – 650 lbs. |
| Lift Time | Operator Controlled |
| Descent Time | Operator Controlled |
| Voltages | 1 or 3 Phase, Including 120v |
| Bolt-On Shelf |
| Gated Safety Cages |
| Discharge Heights: 42″, 50″, or 56″ |
| Controls: Specify Left or Right Side |

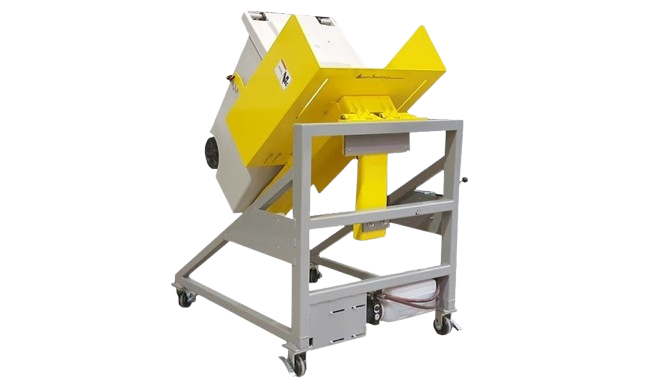

Rolling Cart tippers are designed with a 42” high discharge height, casters, and a 350 lb. lifting capacity per bin. These functional cart tippers can be used with many different types of equipment and reduce operator fatigue while increasing efficiency.
AMS-T1 cart tippers lift and empty 64 and 95-gallon domestic carts into a container, such as a Gaylord box. Domestic rolling carts include a lift bar while European rolling carts do not.
AMS-T1A cart tippers lift 64 and 95-gallon domestic carts & empty them onto a built-in shelf, allowing for the easy feeding of a conveyor-fed industrial shredder.
AMS-T1D double cart tippers lift and empty two 64 and 95-gallon domestic or European carts. Double cart tippers lift each cart separately.
AMS-T1E cart tippers lift and empty 64 and 95-gallon domestic or European carts. A bolt-on shelf is available as are dump heights of 50″ or 56″, in addition to the standard 42″ height.
Installation
Introduction
Installing rolling cart tippers requires careful planning and execution to ensure proper functionality and safety. This process involves setting up the equipment, securing it in place, and performing necessary checks to confirm that it operates correctly. The following procedures outline the steps involved in installing a rolling cart tipper.
Preparation
Before starting the installation, review the manufacturer’s installation manual and ensure all required components and tools are available. Clear the installation area of any obstructions and ensure that the surface is level and capable of supporting the weight of the rolling cart tipper. If applicable, prepare the electrical or pneumatic connections according to the specifications provided.
Positioning the Base Frame
Begin by positioning the base frame of the rolling cart tipper in the designated installation area. The base frame must be aligned with the intended location to ensure that the tipping mechanism operates correctly. Use a level to check that the frame is even on all sides. If necessary, adjust the height or position of the frame to achieve a level setup.
Securing the Base Frame
Once the base frame is correctly positioned and level, secure it to the floor or mounting surface. Depending on the type of floor and the design of the tipper, this may involve bolting the frame down using appropriate anchors or fasteners. Ensure that the frame is firmly attached to prevent any movement during operation.
Installing the Tipping Mechanism
Next, install the tipping mechanism according to the manufacturer’s instructions. This may involve attaching hydraulic or pneumatic cylinders, or electric motors, depending on the model of the tipper. Connect any necessary hoses or wiring to the tipping mechanism, ensuring that all connections are secure and correctly aligned. If the system includes a control panel, mount it in an accessible location near the tipping mechanism.
Connecting Power or Pneumatic Systems
For hydraulic or pneumatic tippers, connect the hydraulic hoses or pneumatic lines to the tipping mechanism. Ensure that all connections are tight and free of leaks. For electric tippers, connect the electrical wiring to the power source, following the electrical diagram provided in the installation manual. Verify that all connections are secure and properly insulated.
Testing the System
With the installation complete, perform a thorough test of the rolling cart tipper. Check that the tipping mechanism functions smoothly and that the bin support platform securely holds and tilts the bin as intended. Test the control panel to ensure that all functions, such as starting, stopping, and adjusting the tilt angle, operate correctly. Observe the system for any signs of malfunction or unusual behavior, and address any issues immediately.
Final Adjustments
After successful testing, make any necessary final adjustments to the rolling cart tipper. This may include fine-tuning the tilt angle, adjusting the speed of the tipping action, or ensuring that safety features are properly calibrated. Conduct a final inspection to confirm that the equipment is installed correctly and is ready for regular use.
Documentation and Training
Complete any required documentation related to the installation, such as inspection reports or compliance forms. Provide training for operators on the proper use and maintenance of the rolling cart tipper. Ensure that all users understand the safety procedures and operational guidelines.
Conclusion
By following these installation procedures, you ensure that the rolling cart tipper is set up correctly and operates efficiently. Proper installation not only enhances the performance of the equipment but also contributes to a safe and productive work environment.
Maintenance
Q&A
Q1: What is a rolling cart tipper and what is its primary function?
A1: A rolling cart tipper is a piece of equipment designed to automate the process of dumping materials from bins into larger containers or processing systems. Its primary function is to tilt the bin to pour out its contents efficiently, reducing the need for manual lifting and enhancing operational productivity.
Q2: What types of rolling cart tippers are available?
A2: Rolling cart tippers come in various types, including manual, hydraulic, pneumatic, and electric models. Manual tippers require human power to operate, while hydraulic and pneumatic tippers use fluid or compressed air pressure for automatic tipping. Electric tippers utilize electric motors and can offer programmable settings for greater control.
Q3: How should I prepare for the installation of a rolling cart tipper?
A3: Preparation involves reviewing the manufacturer’s installation manual, ensuring all components and tools are available, and clearing the installation area. The surface should be level and strong enough to support the tipper. If applicable, prepare electrical or pneumatic connections as specified.
Q4: What steps are involved in the installation of a rolling cart tipper?
A4: Installation involves positioning the base frame in the designated area and ensuring it is level. The frame should be secured to the floor or mounting surface. The tipping mechanism is then installed and connected, including hydraulic, pneumatic, or electrical connections. Finally, the system is tested for proper operation and adjusted as needed.
Q5: How often should I perform maintenance on a rolling cart tipper?
A5: Maintenance should be performed regularly, with daily inspections of the tipper’s condition and safety features. Routine cleaning, lubrication, and checks of components should also be done periodically, following the manufacturer’s recommendations. Calibration and safety checks should be performed as needed.
Q6: What are common issues to look out for during maintenance?
A6: Common issues include leaks in hydraulic or pneumatic systems, worn or damaged components, and malfunctioning safety features. Operators should also look for any unusual noises or difficulties in the tipping mechanism. Regular inspections and maintenance can help identify and address these issues before they become significant problems.
Q7: How do I ensure the safety of operators using the rolling cart tipper?
A7: Ensure that all safety features, such as emergency stop buttons and safety guards, are operational. Provide training for operators on safe usage and maintenance practices. Regularly check that safety features are functioning correctly and address any issues immediately to maintain a safe working environment.
Q8: Can rolling cart tippers be customized for specific needs?
A8: Yes, rolling cart tippers can be customized to accommodate unique bin sizes, shapes, or specific operational requirements. Custom tippers are designed to meet the specific needs of different industries and applications, providing tailored solutions for handling various materials effectively.
Q9: What should I do if the rolling cart tipper is not functioning correctly?
A9: If the tipper is not functioning correctly, first check for obvious issues such as power supply problems, loose connections, or visible damage. Consult the troubleshooting section of the manufacturer’s manual for guidance. If the problem persists, contact a professional technician or the manufacturer for support and repairs.
Q10: How do I document maintenance activities for the rolling cart tipper?
A10: Maintain detailed records of all maintenance activities, including inspections, cleaning, lubrication, and repairs. Document any issues identified and the actions taken to resolve them. Keeping accurate records helps track the equipment’s maintenance history and ensures compliance with manufacturer recommendations.
Advantages / Disadvantages
Advantages of Rolling Cart Tippers
Increased Efficiency: Rolling cart tippers streamline the process of dumping materials by automating the tilt and pour action. This reduces the time and labor required to transfer materials from bins to larger containers or processing systems, enhancing overall productivity.
Improved Safety: By automating the tipping process, rolling cart tippers minimize the need for manual handling of heavy or bulky bins. This reduces the risk of injuries associated with lifting and carrying, contributing to a safer work environment.
Consistency and Accuracy: Tippers ensure a consistent dumping angle and controlled speed, which helps in achieving precise and uniform material discharge. This consistency is crucial for processes that require accurate material handling.
Versatility: Rolling cart tippers are available in various types, including manual, hydraulic, pneumatic, and electric models, making them suitable for a wide range of applications and industries. They can be customized to handle different bin sizes and materials.
Enhanced Ergonomics: With features designed to reduce physical strain, such as automated tipping mechanisms and adjustable platforms, rolling cart tippers improve ergonomic conditions for operators, leading to increased comfort and reduced fatigue.
Disadvantages of Rolling Cart Tippers
Initial Cost: The upfront cost of purchasing and installing a rolling cart tipper can be significant, particularly for hydraulic or electric models. This initial investment might be a barrier for smaller businesses or those with limited budgets.
Maintenance Requirements: While rolling cart tippers can be low-maintenance, they do require regular upkeep, including inspections, cleaning, and lubrication. Hydraulic and pneumatic systems may need more frequent checks for leaks and component wear.
Space Constraints: Depending on the design and size of the rolling cart tipper, it may require a considerable amount of floor space. This could be a limitation in facilities with constrained work areas or tight layouts.
Complexity of Operation: Advanced models, especially those with hydraulic or pneumatic systems, may require specialized training for operators and maintenance personnel. This complexity can lead to additional time and costs for training and technical support.
Potential for Mechanical Issues: As with any mechanical equipment, rolling cart tippers are subject to wear and tear, which can lead to mechanical issues or breakdowns. Regular maintenance and prompt repairs are necessary to mitigate downtime and ensure reliable operation.
Applications
Industrial Manufacturing
In industrial manufacturing, rolling cart tippers are used to move raw materials, parts, and finished products between different stages of production. They enhance efficiency by reducing manual labor and speeding up the material handling process. Hydraulic or pneumatic tippers are particularly valuable in high-volume production environments.
Waste Management
In waste management facilities, rolling cart tippers are used to empty trash bins into larger collection containers. They help streamline waste processing and reduce manual handling, improving overall efficiency and reducing the risk of worker injuries.
Food Processing
Rolling cart tippers are employed in food processing plants to handle ingredients, finished products, and waste. They ensure that materials are transferred hygienically and efficiently, supporting compliance with food safety standards and improving operational efficiency.
Distribution and Logistics
In distribution centers and logistics operations, rolling cart tippers are used to handle and sort packages and materials. They facilitate the movement of goods between storage areas and shipping docks, enhancing productivity and reducing labor costs.
Healthcare and Pharmaceuticals
In healthcare and pharmaceutical facilities, rolling cart tippers are used to handle materials such as medical supplies and pharmaceutical products. They help maintain clean and organized environments while ensuring that materials are moved safely and efficiently.
